WIKA ensures the calibration of 36" cone flow meters
Achieving 0.5 % uncertainty compared to the typical ±5 % without calibration, the MEGA loop enables precise and reliable flow measurement for a demanding offshore application.
WIKA's commitment to precision drives the production of over 50 million measuring instruments annually.
The WIKA Group specialises in industrial measurement solutions, including pressure, temperature, flow measurement and calibration technology. With over 11,000 employees, the company produces over 50 million measuring instruments annually, ranging from standard instruments to custom solutions. A division of WIKA, Euromisure WIKA Instruments, focuses on high-precision flow measuring instruments. Supporting global engineering firms and energy companies, Euromisure offers advanced solutions such as the FLC-FC cone flow meter, designed for superior accuracy and reliability.
FORCE Technology can calibrate these large flow meters for demanding applications
WIKA's 36" FLC-FC cone flow meter uses differential pressure to determine flow. For this application, the cones were made entirely of Inconel and the spool and flanges were made in carbon steel, coated with the same corrosion-resistant alloy using the cladding technique that extends the product longevity with effective cost containment by avoiding the use of 100 % Inconel components. To be able to calibrate the meters, WIKA provided specially built upstream and downstream pipe spool adapters.

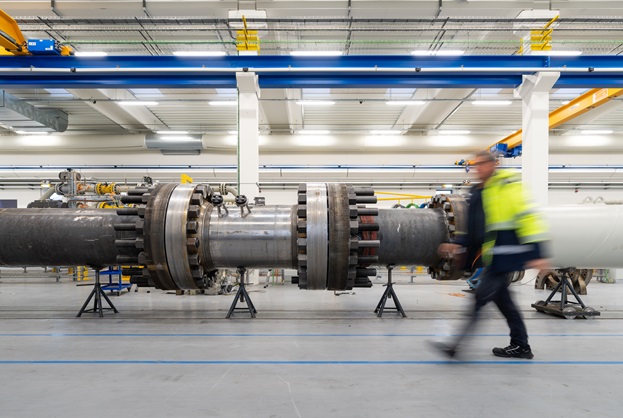

The two WIKA cone flow meters were calibrated using the MEGA loop at the Vejen facility, where our staff determined the discharge coefficient and its associated uncertainty through measurements under flow characteristics that replicate the Reynolds numbers expected in the real-world application. This process was undertaken to document the discharge coefficient uncertainty, which corresponds to approximately 0.5 % instead of the ± 5 % of standard reference value ensured by cone flow meters without calibration.
A collaboration built on trust, proven reliability, expertise and proactive support
"Euromisure WIKA Instruments has been working in collaboration with FORCE Technology since 2018 on the calibration of large primary flow elements and ultrasonic flow meters. This partnership is founded on trust, proven reliability, expertise and proactive support. Our customers depend on the superior performance of our flow meters to optimise operations and reduce costs. The MEGA loop calibration provides the proof they need, ensuring both confidence and measurable efficiency gains.", says Gianluca Cisarri, Product Manager at Euromisure WIKA Instruments.

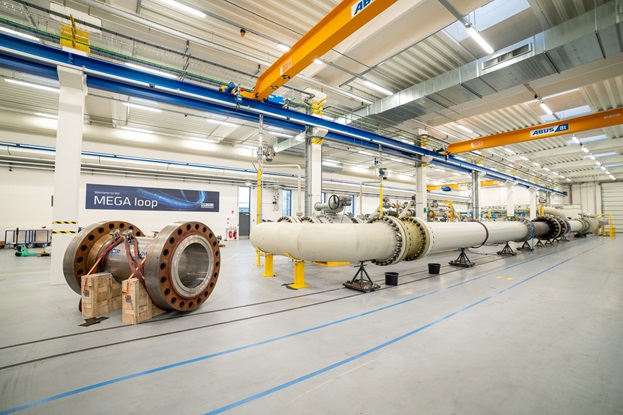

"Testing flow meters of this size highlights the unique capabilities of our facility. We're proud to operate the world's largest closed loop, providing precise calibration that ensures optimal performance and efficiency for our customers," says Marco Hutteman, Senior Team Leader at FORCE Technology.

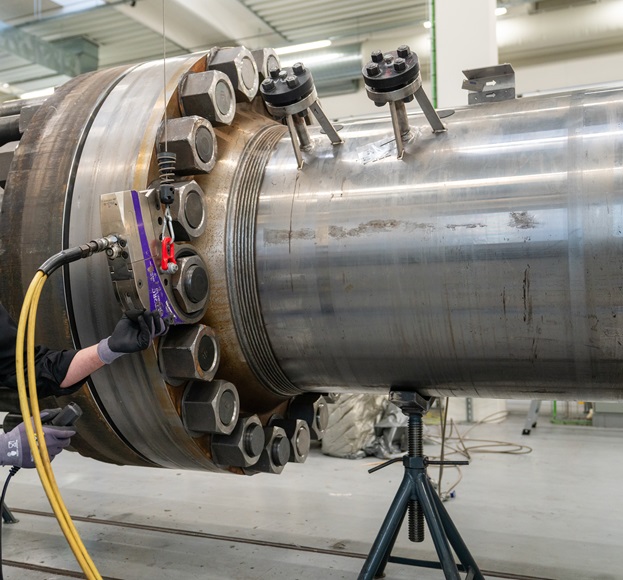

Steps in preparing the WIKA 36" cone flow meter for calibration:
