See how to collect and send samples correctly for SEM-EDS analysis and minimise the risk of contamination.

When you find a foreign body in a product or production environment, the way you collect and handle the sample can affect the subsequent analysis. Follow these steps to prepare, collect and label your sample before sending it to our laboratory.

See the four sampling methods for SEM-EDS analysis

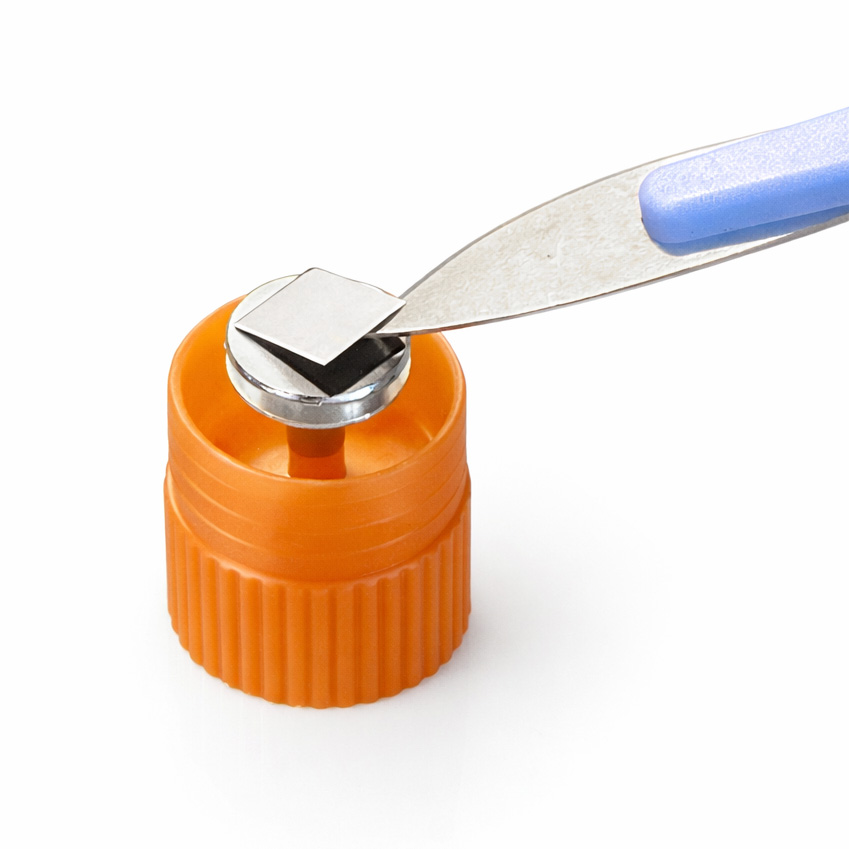

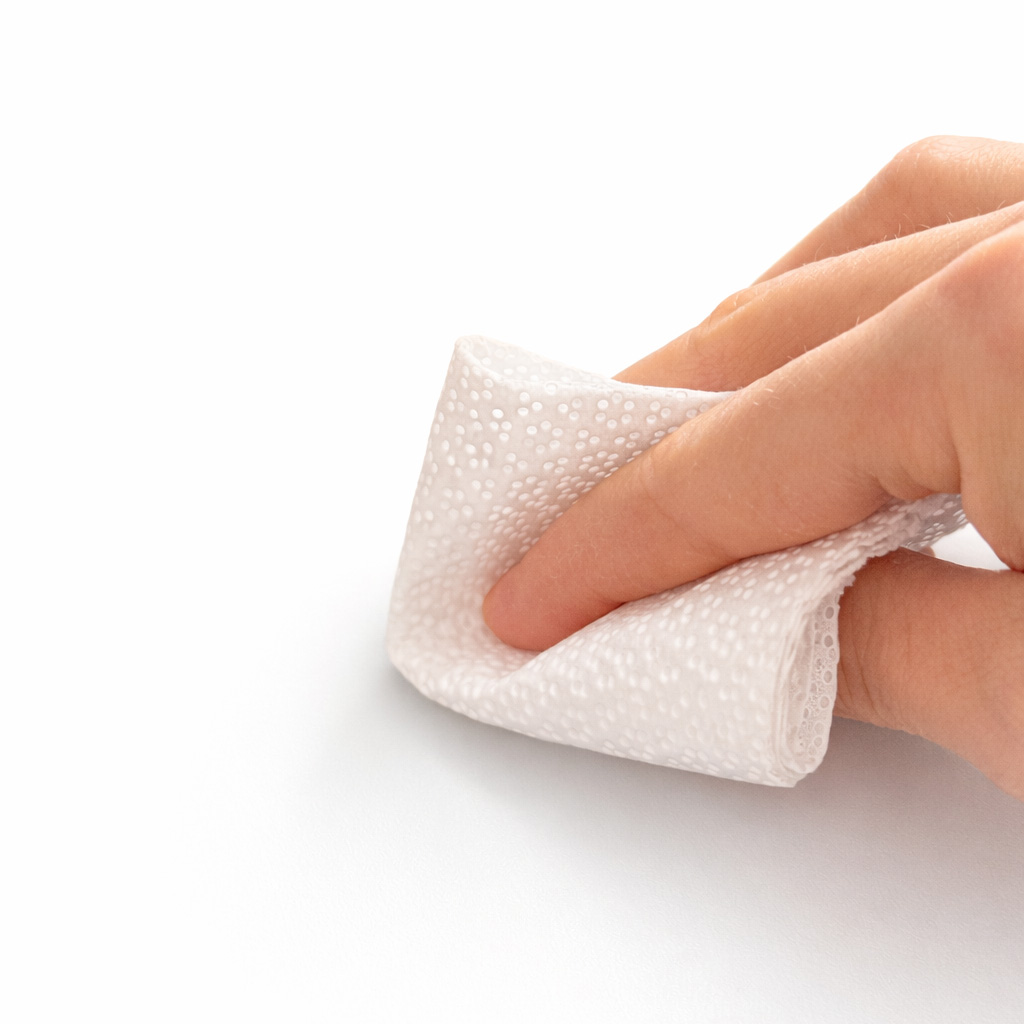

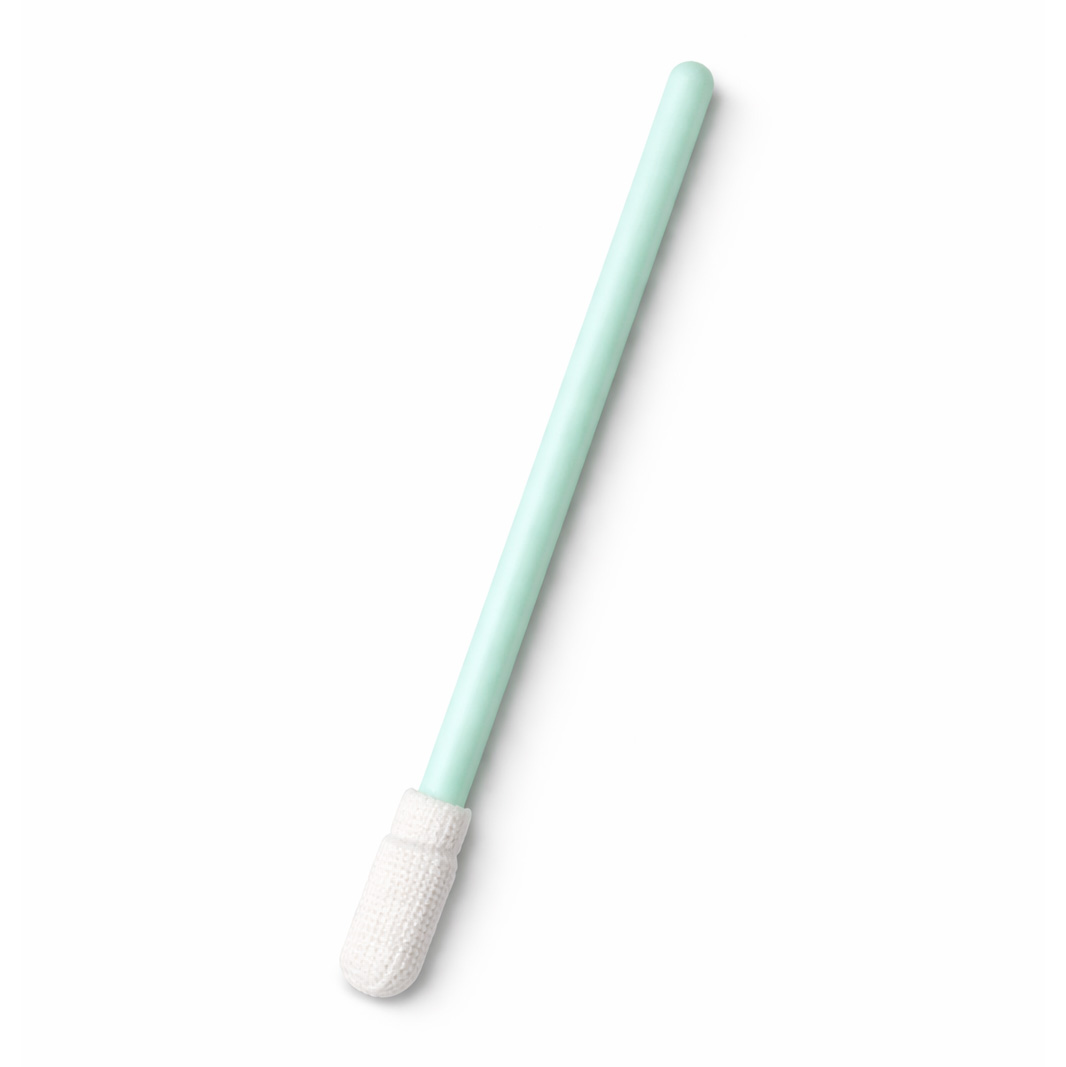

See how to collect a sample using a stub, scalpel, sampling swab or wipe.

Download comprehensive sampling guide

Showing 1 of 1 results

Overview of the sampling process

Step 1: Prepare for sampling

Before you start:

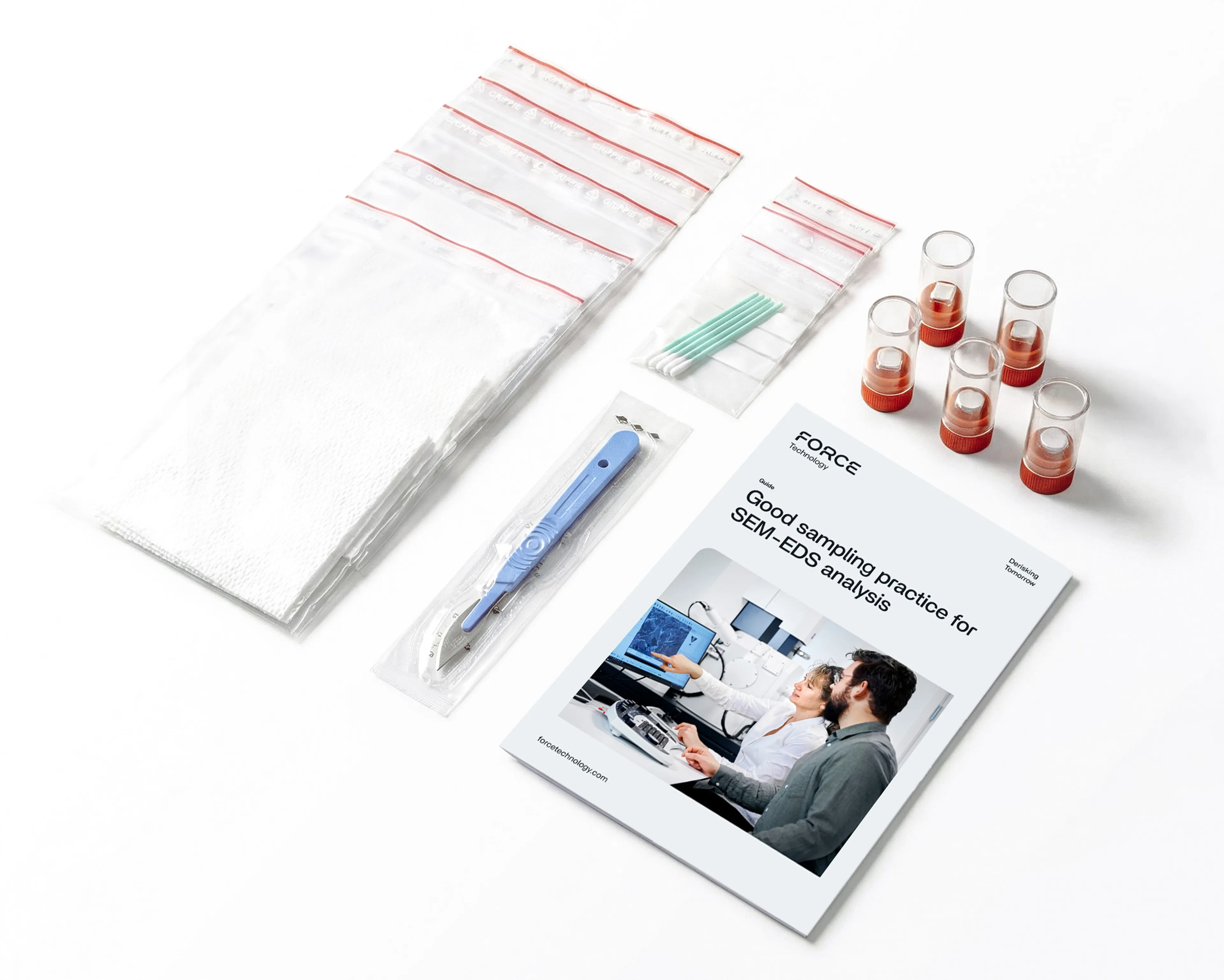

  • Use the materials provided in the particle sampling kit.
  • Avoid touching the sample unnecessarily.
  • Make sure the surroundings are clean.
  • Have your sample ID ready.

Step 2: Choose a method and collect the sample

Is the foreign body loose?

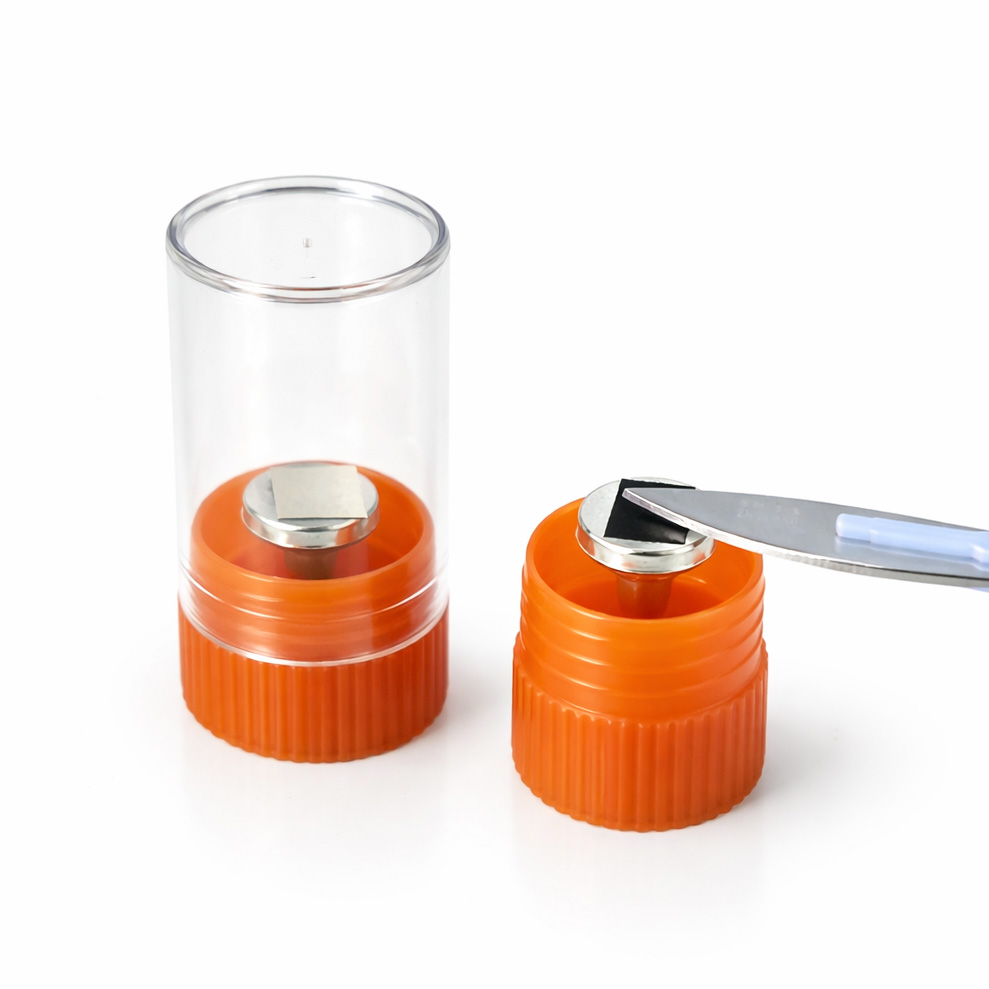

Place it in a sample container or on a stub and label the container with a sample ID.

Is the foreign body attached to a surface?

Choose a suitable method below. The methods are shown in order of priority, but the right method depends on the material and sampling location.
